Implementing, Monitoring, and Troubleshooting Security:

Active Directory Overview:

Active Directory (AD) srevices provide a single point of network management, allowing you to add, remove, and relocate resources easily. It offers significant enhancements over the limitations of the older Windows NT domain based security model. It's features are:

• Simplified Administration - AD provides a single point of logon for *all* network resources - an administrator can logon to one computer and administer objects on any computer in the network.
• Scalability - NT 4 domains had a practical limitation of about 40,000 objects. AD scales to millions of objects, if needed.
• Open standards support - uses DNS as it's domain naming and location service so Windows 2000 domain names are also DNS domain names. Support for LDAP v2 and v3 makes AD interoperable with other directory services that support the same, such as Novell's NDS. HTTP support means that AD can be searched using a Web browser. Kerberos 5 support provides interoperability with other products that use the same authentication mechanism.

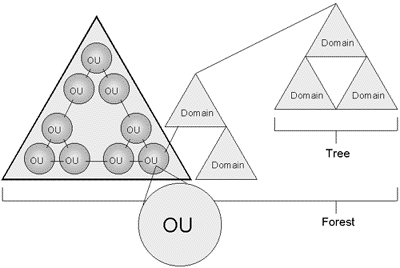

Active Directory Structure:

• Object - distinct named set of attributes that represents a network resource such as a computer or a user account.
• Classes - logical groupings of objects such as user accounts, computers, domains or organizational units.
• Organizational Unit (OU) - container used to organize objects inside a domain into logical administrative groups such as computers, printers, user accounts, file shares, applications and even other OUs.
• Domain - all network objects exist within a domain with each domain storing information only about the objects it contains. A domain is a security boundry - access to objects is controlled by Access Control Lists (ACLs). ACLs contain the permissions associated with objects that control which users or types of users can access them. In Windows 2000, all security policies and settings (like Administrative rights) do not cross from one domain to another. The domain admin only has right to set policies within his/her domain.
• Tree - a grouping or hierarchical arrangement of one or more Windows 2000 domains that share a contiguous names space (e.g. cramsession.brainbuzz.com, sales.brainbuzz.com, and jobs.brainbuzz.com). All domains inside a single tree share a common schema (formal definition of all object types that can be stored in an AD deployment) and share a common Global Catalog.
• Forest - a grouping or hierarchical arrangement of one or more domain trees that form a disjointed namespace (e.g. cramsession.com and brainbuzz.com). All trees in the forest share a common schema and Global Catalog, but have different naming structures. Domains in a forest operate independently of each other, but the forest enables communication across the domains.
• Sites - combination of one or more IP subnets connected by high-speed links. Not part of the AD namespace, and contains only computer objects and connection objects used to configure replication between sites.

Site Replication:

• Active Directory information is replicated between Domain Controllers (DCs) and ensures that changes to a domain controller are reflected in all DCs within a domain. A DC is a computer running Windows 2000 server which contains a replica of the domain directory (member servers do not).
• DCs store a copy of all AD information for their domain, manage changes to it and copy those changes to other DCs in the same domain. DCs in a domain automatically copy all objects in the domain to each other. When you change information in AD, you are making the change on one of the DCs.
• Administrators can specify how often replication occurs, at what times, and how much data can be sent.
• DCs immediately replicate important changes to AD like a user account being disabled.
• AD uses multimaster replication meaning that no one DC is the master domain controller - all DCs within a domain are peers (however there are still some roles called Operations Master roles that can only be held by one DC at a time).
• Having more than one DC in a domain provides fault-tolerance. If a DC goes down, another is able to continue authenticating logins and providing required services using it's copy of AD.
• Replication is automatically generates a ring topology for replication in the same domain and site. The ring ensures that if one DC goes down, it still has an available path to replicate it's information to other DCs.

Active Directory Concepts:

Schema - contains a formal definition of contents and structure of AD such as attributes, classes and class properties. For an object class, the schema defines what attributes an instance of a class must have, additional attributes that are allowed and which object class can be it's parent. Installing AD on the first computer in a network creates the domain and default schema which contains commonly used objects. Extensions can be made to the schema whenever needed. By default, write access to the schema is limited to members of the Administrators group. (KB# Q229691)

Global Catalog - central repository of info about object in a tree or forest. AD automatically creates a global catalog from the domains that make up AD through the replication process. Attributes stored in the global catalog are usually those most often used in Search operations (like user names, logon names, etc.) and are used to locate a full replica of the object. Because of this, the global catalog can be used to find objects anywhere in the network without replication of all information between DCs.

Active Directory Naming Conventions:

• Distinguished Name (DN) - every object in AD has one. Uniquely identifies object and contains sufficient info for an AD client to retrieve it from the Directory. Includes the name of the domain that holds the object and also the complete path through the container hierarchy to it. DNs must be unique - AD will not allow duplicates.
• Relative Distingushed Name (RDN) - if the DN is unknown, you can still query an object by it's attributes. The RDN is a part of the name that is an attribute of the object itself (e.g. a user's first name and location).
• Globally Unique Identifier (GUID) - unique 128-bit number assigned to objects when they are created. The GUID never changes so even if the object is renamed or moved, the GUID can be used to locate it.
• User Principal Name (UPN) - "friendly name" given to a user account (e.g. johndoe@brainbuzz.com).

Local user accounts: (KB# Q217050)

• Resides only on the computer where the account was created in it's local security database. If computer is part of a peer-to-peer workgroup, accounts for that user will have to be created on each additional machine that they wish to log onto locally. Local accounts cannot access Windows 2000 domain resources and should not be created on computers that are part of a domain.
• Domain user accounts reside in AD on domain controllers and can access all resources on a network that they have been accorded priveleges for.
• Built in user accounts are Administrator (used for managing the local system) and Guest (for occasional users - disabled by default)
• Usernames cannot be longer than 20 characters and cannot contain the following illegal characters: " / \ [ ] : ; | = , + * ? < >
• User logon names are not case sensitive. You can use alphanumeric combinations to increase security, if desired.
• Passwords can be up to 128 characters (we're not kidding!!) but Microsoft recommends limiting them to about eight characters.
• The same characters that are considered illegal in usernames are also verbotten for use in passwords
• User accounts are added and configured through the Computer Management snap-in.
• MS recommends that users be encouraged to store their data in their My Documents folder which is automatically created within their profile folder and is the default location that Microsoft applications use for storing data. This folder should not be used with roaming profiles unless it has been redirected to a network file share.
• Creating and duplicating accounts requires only two pieces of information: username and password. Disabling an account is typically used when someone else will take the user's place or when the user might return.
• Delete an account only when absolutely necessary for space or organization purposes.
• When copying a user account, the new user will stay in the same groups that the old user was a member of. The user will keep all group rights that were granted through groups, but lose all individual rights that were granted specifically for that user.

Local user authentication:

Built-in local groups:

Built-in system groups:

Group Policy:

Group Policies are a collection of user environment settings that are enforced by the operating system and cannot be modified by the user. User profiles refer to the environment settings that users can change.

System Policy Editor (poledit.exe) - Windows NT 4, Windows 95 and Windows 98 all use the System Policy Editor (poledit.exe) to specify user and computer configuration that is stored in the registry.

• Not secure because settings can be changed by a user with the Registry Editor (regedit.exe). Settings are imported/exported using .ADM templates.
• Are considered "undesirabley persistant" as they are not removed when the policy ends.
• Windows 2000 comes with system.adm (system settings), inetres.adm (Internet Explorer settins) and conf.adm (NetMeeting settings) although the latter is not loaded by default.

Group Policy snap-in (gpedit.msc) - Exclusive to Windows 2000 and supercedes the System Policy Editor. Uses Incremental Security Templates.

• Should only be applied to Windows 2000 systems that have been clean installed onto an NTFS partition. NTFS computers that have been upgraded from NT4 or earlier, only the Basic security templates can be applied.
• Settings can be stored locally or in AD. Are secure and cannot be changed by users - only Administrators.
• More flexible than System Policies as they can be filtered using Active Directory.
• Settings are imported/exported using .INF files. The Group Policy snap-in can be focused on a local or remote system.

Incremental Security Templates for Windows 2000:

Local Group Policy:

• There are two types of Group Policy objects: local Group Policy objects and non-local Group Policy Objects. Each Windows 2000 system can have only one local Group Policy object.
• Order of application is Local, Site, Domain and Organizational Unit. Local Policies have the least precedence whereas OU Policies have the highest.

Non-local Group Policy (stored in Active Directory):

• Can be linked to a site with AD Sites and Services and applies to all domains at the site
• When applied to a domain it affects all users and computers in the domain and (by inheritance) all users and computers in Organizational Units.

Config.pol, NTConfig.pol and Registry.pol:

• Windows 2000 uses the registry.pol format. Two files are created, one for Computer Configuration (stored in the \Machine subdirectory) and one for User Configuration (stored in the \User subdirectory).
• Registry.pol files can be used with Windows 95/98, Windows NT 4.0 and Windows 2000 as it is a text file embedded with binary strings. NTConfig.pol is a binary file whereas Config.pol is a text file.
• .POL files can be viewed using the regview.exe tool from the W2K Resource Kit. Viewing them does not apply them to the registry.

Security configuration:

Security Configuration and Analysis snap-in - Stand alone MMC snap-in that can configure or analyze W2K security. Based on contents of a security template created using Security Templates snap-in. There is a text based version of this tool that can be run from the command line - secedit.exe.

By default, Windows 2000 Professional doesn't require users to press CTRL-ALT-DEL to logon. Increase security by disabling this feature and forcing users to press CTRL-ALT-DEL, which is a key combination recognized only by Windows (set using the Group Policy snap-in).

To disable access to the workstation, but allow programs to continue running, use the Lock Workstation option (from the CTRL-ALT-DEL dialog box).

To disable access to the workstation, and not allow programs to continue running, use the Logoff option (from the CTRL-ALT-DEL dialog box).

To lock the workstation after a period of idle time, use a screensaver password.

Auditing can be enabled by clicking Start > Programs > Administrative Tools > Local Security Policy. In the Local Security Settings window double-click Local Policies and then click Audit Policy. Highlight the event you want to audit and on the Action menu, click Security. Set the properties for each object as desired then restart computer for new policies to take effect.

Clear the Virtual Memory Pagefile when the system shuts down. By default it is not cleared, but this can be changed under Local Security Policy Settings and will prevent unauthorized person from extracting information from your system's pagefile. (KB# Q182086)

Prevent the last user name from being displayed at logon (W2K Pro does this by default). Use the Group Policy snap-in, Local Computer Policy, to change this.

When using Event Viewer, only local administrators can see the security log, but anyone (by default) can view other logs.

Encrypting File System (EFS): (KB# Q223316 & Q230520)

About EFS:

• Only works on Windows 2000 NTFS partions (NTFS v5).
• Encryption is transparent to the user.
• Uses public-key encryption. Keys that are used to encrypt the file are encrypted by using a public key from the user's certificate.The list of encrypted file-encryption keys is kept with the encrypted file and is unique to it. When decrypting the file encryption keys, the file owner provides a private key which only he has. (KB# Q241201 & Q230490)
• If the owner has lost his private key, an appointed recovery system agent can open the file using his/her key instead. (KB# Q242296)
• There can be more than one recovery agent, but at least one public recovery key must be present on the system when the file is encrypted.
• EFS resides in the Windows OS kernel and uses the non-paged memory pool to store file encryption keys - this means no one will be able to extract them from your paging file.
• Encrypted files can be backed up using the Backup Utility, but will retain their encrypted state as access permissions are preserved. (KB# Q227825 & Q223178)
• Microsoft recommends creating an NTFS folder and encrypting it. In the Properties dialog box for the folder click the General tab then the Advanced button and select the "Encrypt Contents To Secure Data" check box. The folder isn't encrypted, but files placed in it will be automatically encrypted. Uncheck the box if you want to decrypt the file.
• Default encryption is 56-bit. North Americans can upgrade to 128-bit encryption.
• Compressed files can't be encrypted and vice versa. (KB# Q223093)
• You can't share encrypted files
• Use the Cipher command to work with encrypted files from the command line. (KB# Q229530) & Q229546)
• Encrypted files are decrypted if you copy or move them to a FAT volume (remember that floppies are always formatted as FAT).
• Cut and paste to move files into an encrypted folder - if you drag and drop files, the files are not automatically encrypted in the new folder.
• The efsinfo.exe utility in the W2K Resource Kit allows an administrator to determine information about encrypted files (KB# Q243026)

Using the CIPHER command:

IPSec: (KB# Q231585)

IPSec can be implemented in a Windows 2000 domain using Active Directory or on a Windows 2000 machine through it's Local Security settings. It is not available for Windows 95/98 or Windows NT.

IPSec itself is a protocol, not a service. It consists of two separate protocols, Authentication Headers (AH) and Encapsulated Security Payload (ESP). AH provides authentication, integrity and anti-replay but does not encrypt data and is used when a secure connection is needed but the data itself is not sensitive. ESP provides the aforementioned plus confidentiality (data encryption) and is used to protect sensitive or proprietary information but is associated with greater system overhead for encrypting and decrypting data.

Supported IPSec authentication methods are Kerberos v5 Public Key Certificate Authorities, Microsoft Certificate Server, and Pre-shared Key. (KB# Q240262)

The IPSec Policy Agent is a Windows 2000 service that runs within the LSASS.EXE process and shows up in the Services snap-in in MMC. It is loaded and started at system startup and retrieves an IPSec policy from either Active Directory or the local registry. After the IPSec Policy has been obtained, it will be applied to *all* IP traffic sent or received by that system (default behavior - IPSec policy can be modified to allow "soft associations" KB# Q234580).

Before two computers can communicate they must negotiate a Security Association (SA). The SA defines the details of how the computers will use IPSec, with which keys, key lifetimes, and which encryption and authentication protocols will be used.

When participating in a Windows 2000 domain, IPSec policies are stored in Active Directory. Without AD, they are stored in these registry keys...  (KB# Q231588)

Group Policy:
HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\PolicyAgent\Policy\Cache

Local Policy:
HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\PolicyAgent\Policy\Local

Use IPSec Monitor (ipsecmon.exe) to view status of IPSec on a Windows 2000 system.Windows 2000 Server Network Monitor can be used to view AH and ESP packets (but not ESP packet data). IPSec Policy Agent logs to the IPSECPA.LOG file. (KB# Q231587 & Q234581)
